PostgreSQL queries performance
This is a glimpse of PostgreSQL queries performance based-on some basic practice on DELETE queries. The tests of the queries were implemented in Python and run on a PostgreSQL database installed on a VM (2 Intel Xeon CPU E5-2690 v3 @ 2.60GHz CPUs, 4GB RAM, Ubuntu 18.04 LTS bionic).
A Python script for deleting items from tables.
To completely delete a user record in XNAT database, items from 6 tables need to be deleted.
At the beginning, I manually ran DELETE queries in a terminal connecting to the PostgreSQL database. Then I started thinking if I could run the 6 DELETE
queries in one go to delete each inactive user, my job would be much easier. After a bit research, a Python library named psycopg2 was found to satisfy my job. A Python script was immediately written as
import psycopg2, sys
args = sys.argv
if (len(args) <3 ):
print('user_id and user_email are required!')
exit(0)
user_id = sys.argv[1]
user_email = sys.argv[2]
# 6 SQL quueries need to be done for delete a user from the XNAT db
del1 = "delete from xdat_user where login='"+user_id+"'"
del2 = "delete from xhbm_user_registration_data where login='"+user_id+"'"
del3 = "delete from xs_item_cache where contents like '%"+user_id+"%' AND contents like '%"+user_email+"%'"
del4 = "delete from xhbm_xdat_user_auth where auth_user='"+user_id+"'"
del5 = "delete from xhbm_alias_token where xdat_user_id='"+user_id+"'"
del6 = "delete from xdat_user_history where login='"+user_id+"'"
try:
connection = psycopg2.connect(host='my host ip', database='xnat', user=<user>, password=<password>, port=<port number>)
cursor = connection.cursor()
cursor.execute(del1)
connection.commit()
print('1. Deleted from xdat_user')
cursor.execute(del2)
connection.commit()
print('2. Deleted from xhbm_user_registration_data')
cursor.execute(del3)
connection.commit()
print('3. Deleted from xs_item_cache')
cursor.execute(del4)
connection.commit()
print('4. Deleted from xhbm_xdat_user_auth')
cursor.execute(del5)
connection.commit()
print('5. Deleted from xhbm_alias_token')
cursor.execute(del6)
connection.commit()
print('6. Deleted from xdat_user_history')
except (Exception, psycopg2.Error) as error :
print ("Error while getting data from PostgreSQL", error)
finally:
if(connection):
cursor.close()
connection.close()
print('db connection closed.')
After a few runs, I had an idea. I wanted to observe how much differece between 6 queries within one db connection and 6 queries in 6 separate db connection. Then I did 107 runs with the script above, and 50 other runs with the script below.
import psycopg2, sys
args = sys.argv
if (len(args) <3 ):
print('user_id and user_email are required!')
exit(0)
user_id = sys.argv[1]
user_email = sys.argv[2]
# 6 SQL quueries need to be done for delete a user from the XNAT db
del1 = "delete from xdat_user where login='"+user_id+"'"
del2 = "delete from xhbm_user_registration_data where login='"+user_id+"'"
del3 = "delete from xs_item_cache where contents like '%"+user_id+"%' AND contents like '%"+user_email+"%'"
del4 = "delete from xhbm_xdat_user_auth where auth_user='"+user_id+"'"
del5 = "delete from xhbm_alias_token where xdat_user_id='"+user_id+"'"
del6 = "delete from xdat_user_history where login='"+user_id+"'"
try:
connection = psycopg2.connect(host='my host ip', database='xnat', user=<user>, password=<password>, port=<port number>)
cursor = connection.cursor()
cursor.execute(del1)
connection.commit()
except (Exception, psycopg2.Error) as error :
print ("Error while getting data from PostgreSQL", error)
finally:
if(connection):
cursor.close()
connection.close()
print('1. Deleted from xdat_user')
try:
connection = psycopg2.connect(host='my host ip', database='xnat', user=<user>, password=<password>, port=<port number>)
cursor = connection.cursor()
cursor.execute(del2)
connection.commit()
except (Exception, psycopg2.Error) as error :
print ("Error while getting data from PostgreSQL", error)
finally:
if(connection):
cursor.close()
connection.close()
print('2. Deleted from xhbm_user_registration_data')
try:
connection = psycopg2.connect(host='my host ip', database='xnat', user=<user>, password=<password>, port=<port number>)
cursor = connection.cursor()
cursor.execute(del3)
connection.commit()
except (Exception, psycopg2.Error) as error :
print ("Error while getting data from PostgreSQL", error)
finally:
if(connection):
cursor.close()
connection.close()
print('3. Deleted from xs_item_cache')
try:
connection = psycopg2.connect(host='my host ip', database='xnat', user=<user>, password=<password>, port=<port number>)
cursor = connection.cursor()
cursor.execute(del4)
connection.commit()
except (Exception, psycopg2.Error) as error :
print ("Error while getting data from PostgreSQL", error)
finally:
if(connection):
cursor.close()
connection.close()
print('4. Deleted from xhbm_xdat_user_auth')
try:
connection = psycopg2.connect(host='my host ip', database='xnat', user=<user>, password=<password>, port=<port number>)
cursor = connection.cursor()
cursor.execute(del5)
connection.commit()
except (Exception, psycopg2.Error) as error :
print ("Error while getting data from PostgreSQL", error)
finally:
if(connection):
cursor.close()
connection.close()
print('5. Deleted from xhbm_alias_token')
try:
connection = psycopg2.connect(host='my host ip', database='xnat', user=<user>, password=<password>, port=<port number>)
cursor = connection.cursor()
cursor.execute(del6)
connection.commit()
except (Exception, psycopg2.Error) as error :
print ("Error while getting data from PostgreSQL", error)
finally:
if(connection):
cursor.close()
connection.close()
print('6. Deleted from xdat_user_history')

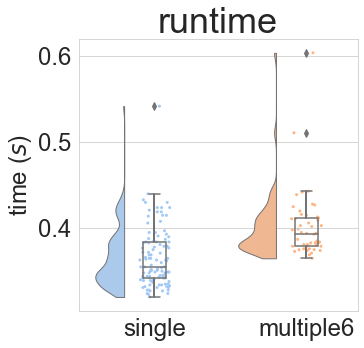

ANOVA (from statsmodels.formula.api import ols) had output as
df sum_sq mean_sq F PR(>F)
Queries 1.0 0.043661 0.043661 33.267452 4.226861e-08
Residual 155.0 0.203425 0.001312 NaN NaN
It is an easy conclusion because the p-value (4.226861e-08) < 0.05 suggested to reject the null hypothesis. The mean time of 6 separate db connections is about 10% slower than that of single db connection.
